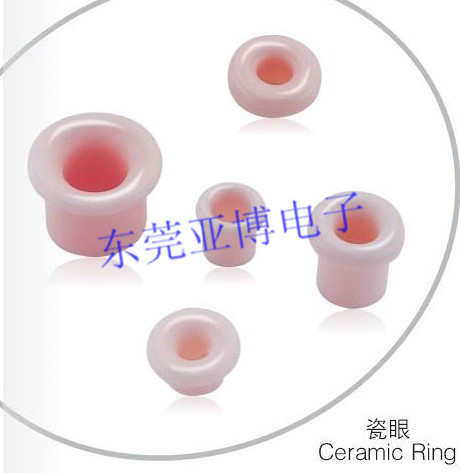

点击图片查看大图
产品类别：陶瓷品
产品特性：
瓷眼由精密陶瓷加工，超精抛光达Ra0.2，由于硬度较高，表面光滑，漆包线在其表面滑动时顺畅不受损伤。
用途：适用于各类绕线机及纺织机械中的过线过丝部件.由精密陶瓷加工,超精抛光达RA0.2。
产品结构图：
陶瓷瓷眼规格表
| 型号Model | 规格（公差±0.05 mm) | 型号Model | 规格（公差±0.05 mm) | ||||||||
| A | B | C | D | E | A | B | C | D | E | ||
| YB001 | 3.1 | 2.5 | 1.2 | 2.5 | 1 | YB026 | 9 | 7 | 3.5 | 9 | 2 |
| YB002 | 4 | 2.8 | 1 | 4.2 | 1 | YB027 | 9.2 | 7 | 4.5 | 7 | 2 |
| YB003 | 4.5 | 3.2 | 1.8 | 4 | 1 | YB028 | 10 | 7.4 | 4.5 | 7.5 | 2 |
| YB004 | 4.8 | 3.3 | 2 | 3.5 | 1 | YB030 | 10 | 7.5 | 4 | 8 | 2 |
| YB005 | 7 | 3.7 | 1.85 | 4 | 1.5 | YB031 | 9.4 | 7.5 | 5.4 | 9.8 | 2 |
| YB006 | 6.5 | 4.8 | 3.3 | 4.6 | 1.5 | YB032 | 11.8 | 7.8 | 5 | 9.8 | 1.9 |
| YB007 | 6.8 | 4.7 | 2.6 | 3.3 | 1.3 | YB033 | 10 | 7.9 | 5 | 13 | 1.5 |
| YB008 | 7.7 | 5.2 | 2.6 | 5.9 | 2 | YB034 | 11 | 8 | 6 | 5 | 2 |
| YB009 | 6.5 | 4.8 | 3 | 6.5 | 1.5 | YB035 | 10.5 | 8 | 3 | 8.5 | 2.5 |
| YB010 | 7 | 5 | 3 | 6 | 1.4 | YB037 | 10.7 | 8.4 | 4.8 | 10 | 2 |
| YB011 | 8 | 5 | 3.1 | 4.1 | 2.1 | YB038 | 12 | 8.5 | 4 | 10 | 2 |
| YB012 | 7.8 | 5.1 | 3 | 5.4 | 1.5 | YB039 | 10.6 | 8.6 | 4.8 | 20 | 3 |
| YB013 | 7.8 | 5.6 | 3.2 | 6 | 2 | YB040 | 12.2 | 8.8 | 4 | 6.8 | 2 |
| YB014 | 7.8 | 5.8 | 3.4 | 8.4 | 2 | YB042 | 12.7 | 9 | 6.2 | 7.5 | 2.5 |
| YB015 | 8 | 5.9 | 3.5 | 6 | 1.5 | YB043 | 15 | 9.5 | 5.5 | 24.5 | 2.9 |
| YB017 | 8 | 6 | 3.5 | 8 | 2 | YB044 | 12 | 9.6 | 6.2 | 11 | 2 |
| YB018 | 8 | 6 | 3.3 | 9 | 1.5 | YB045 | 12 | 9.8 | 6.3 | 10.4 | 2 |
| YB019 | 10.2 | 6.1 | 3.1 | 6.6 | 1.9 | YB047 | 11.9 | 9.9 | 3.4 | 10.8 | 6.1 |
| YB020 | 10.2 | 6.2 | 4.1 | 10 | 2 | YB049 | 14 | 10 | 6.5 | 9.8 | 2.5 |
| YB025 | 9.5 | 7 | 4 | 8.9 | 2 | YB050 | 15.2 | 11.5 | 7.5 | 10 | 2.9 |
瓷眼
